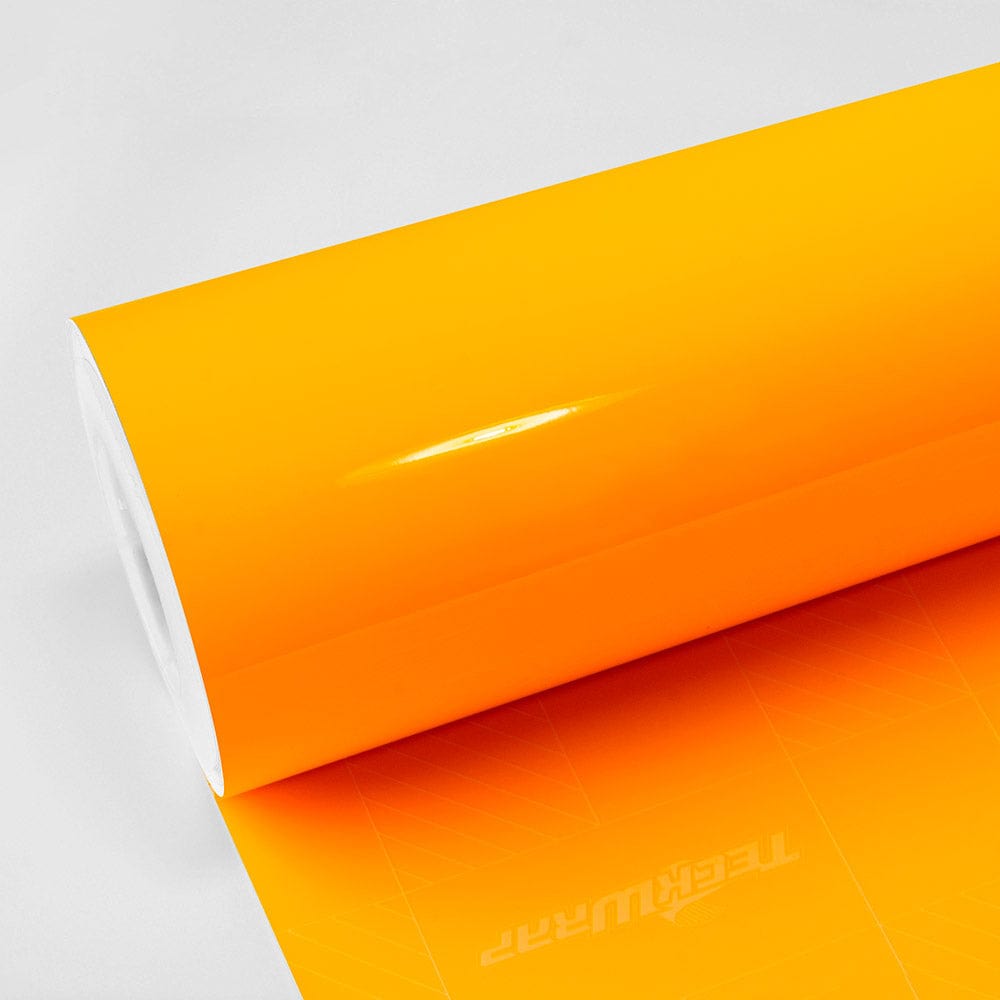

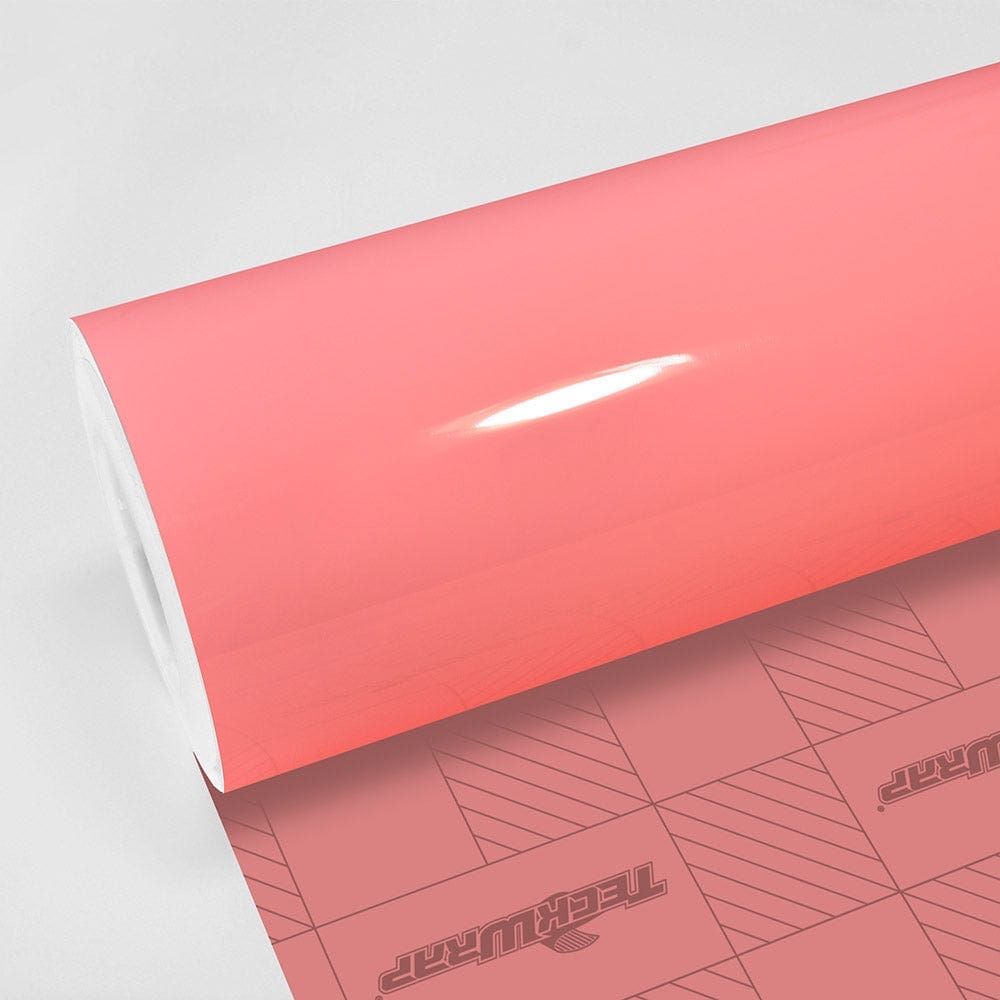

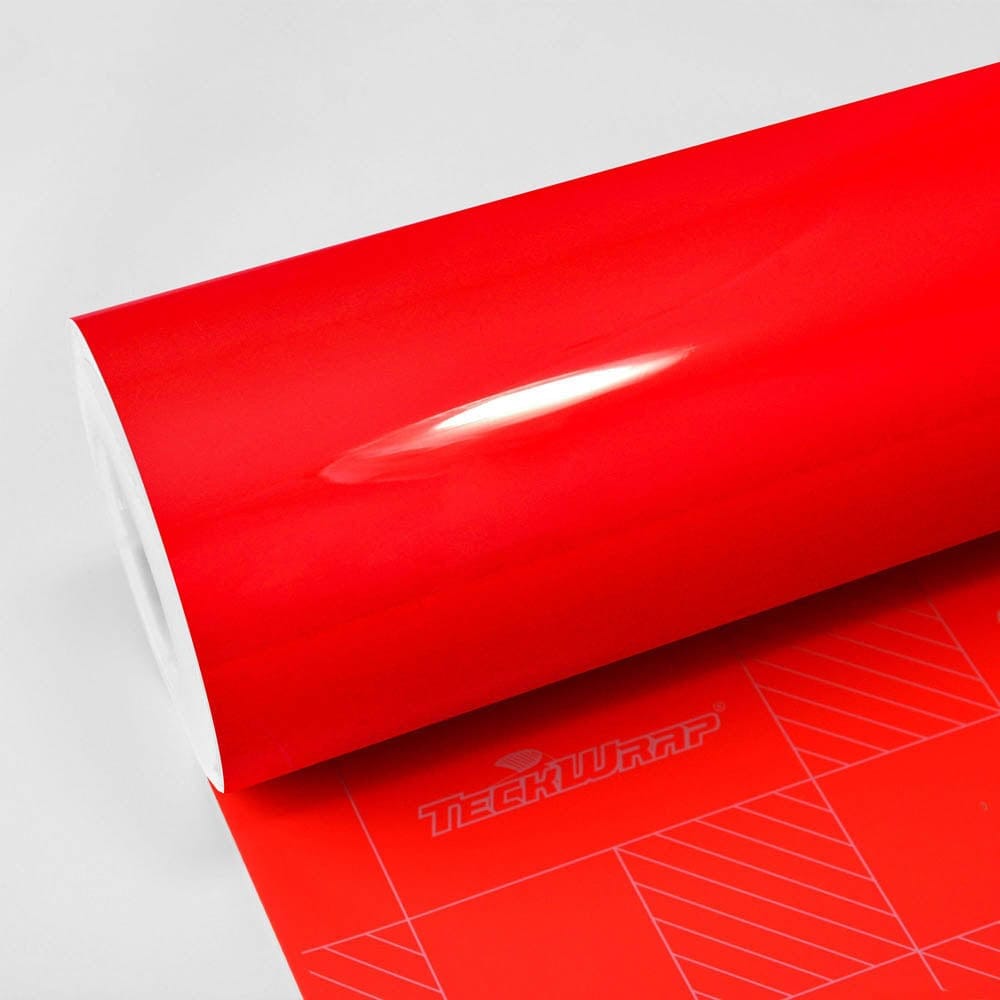

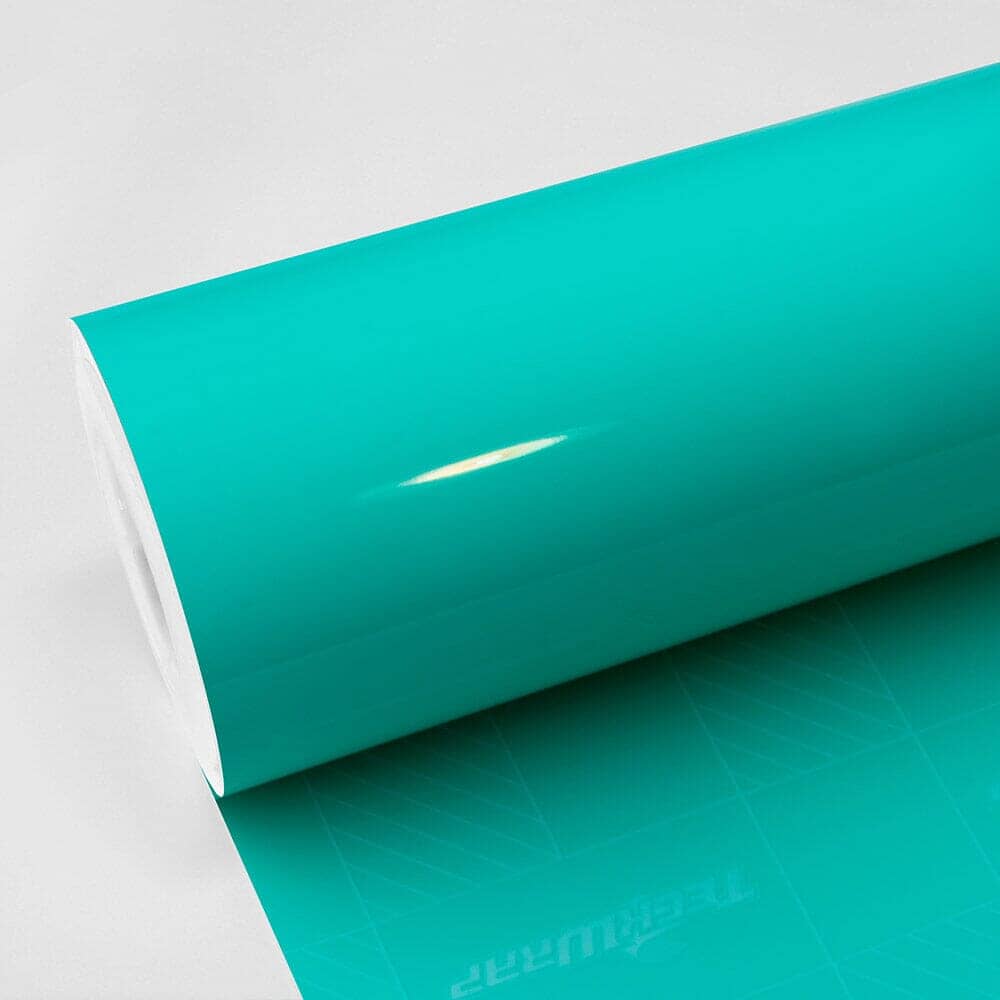

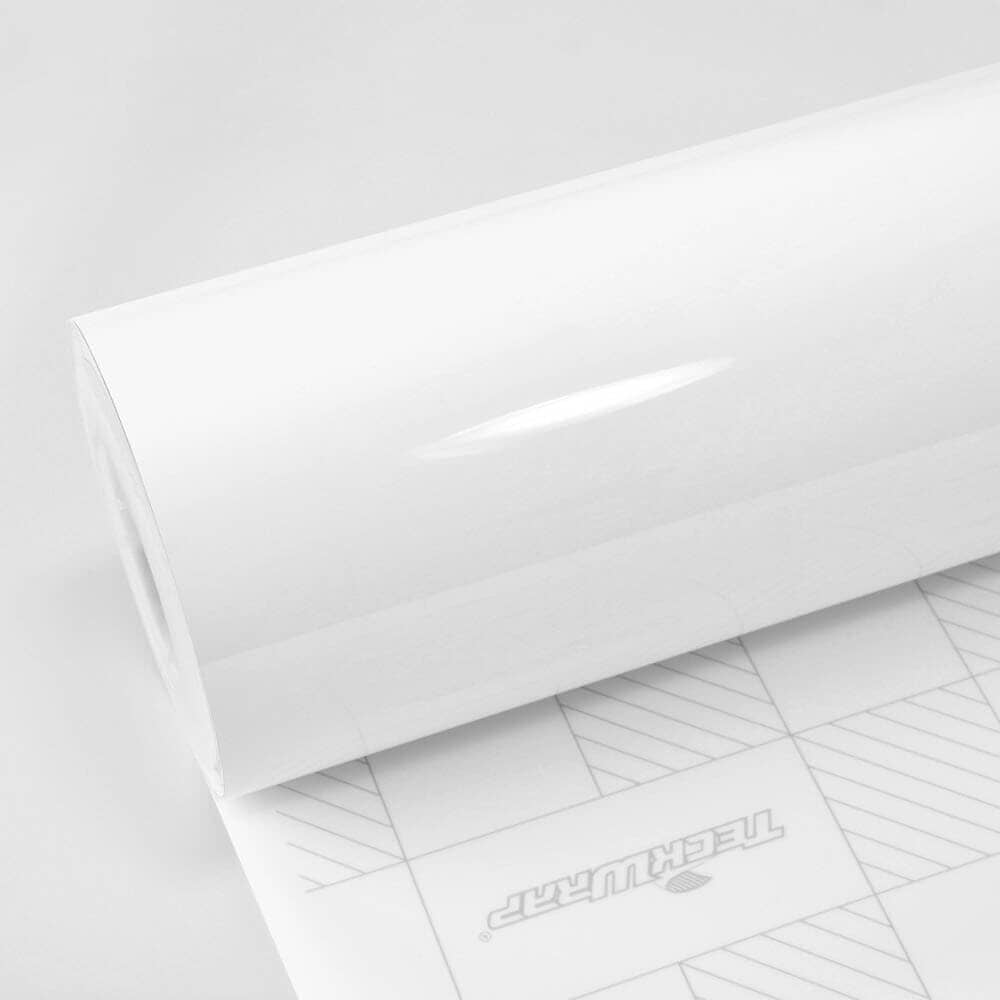

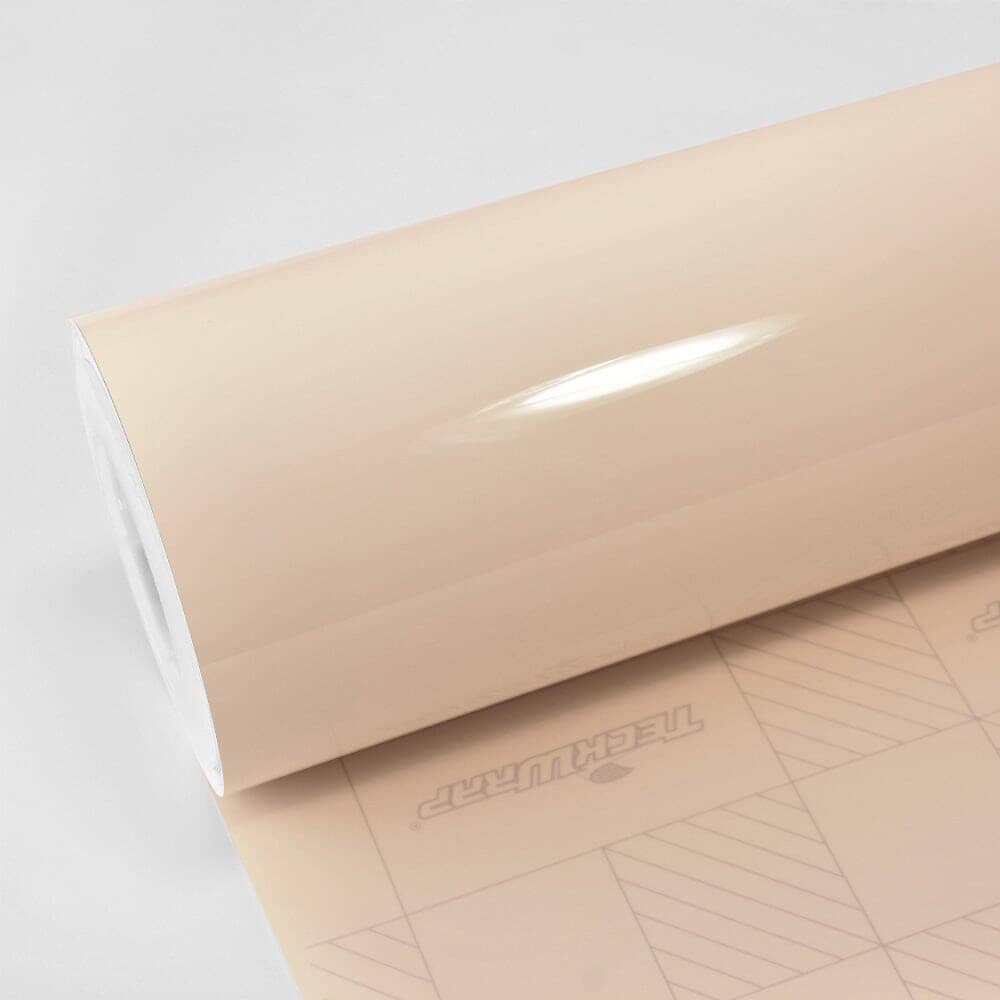

Super Gloss - HD Series (CGHD 01 - 27)

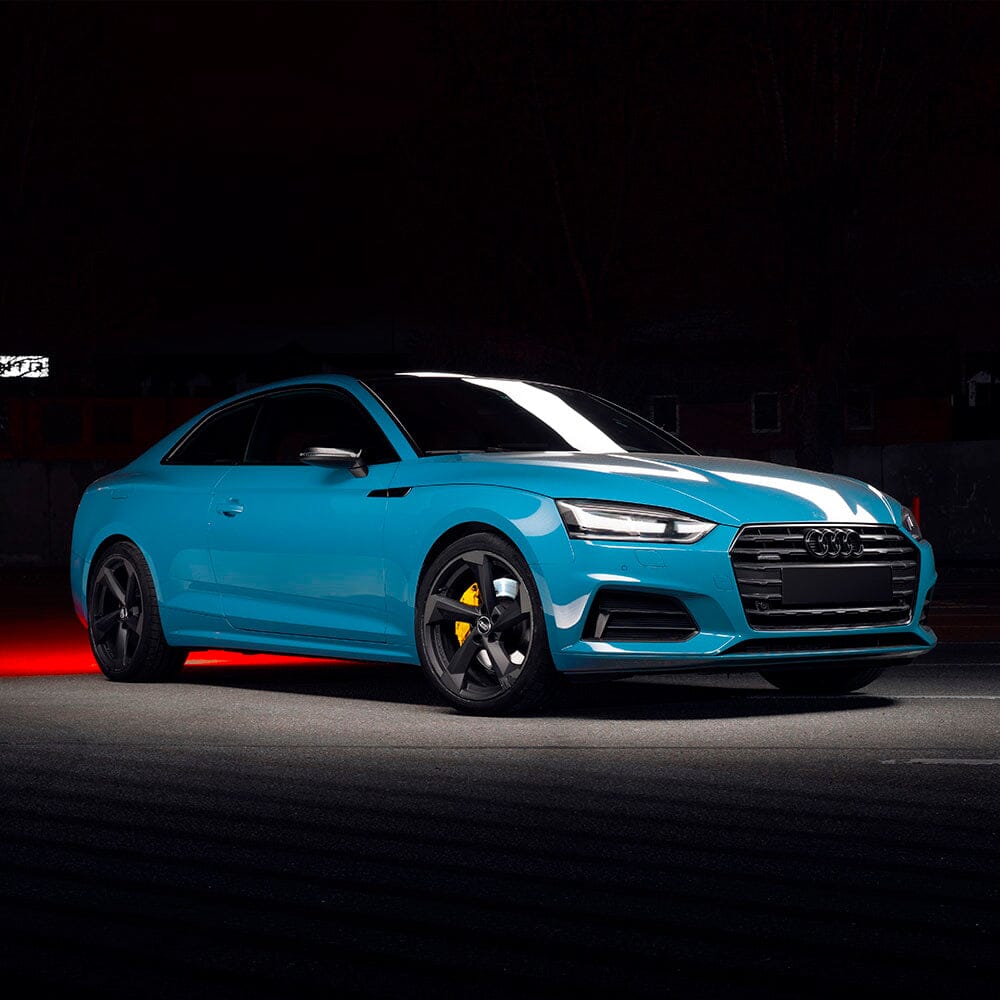

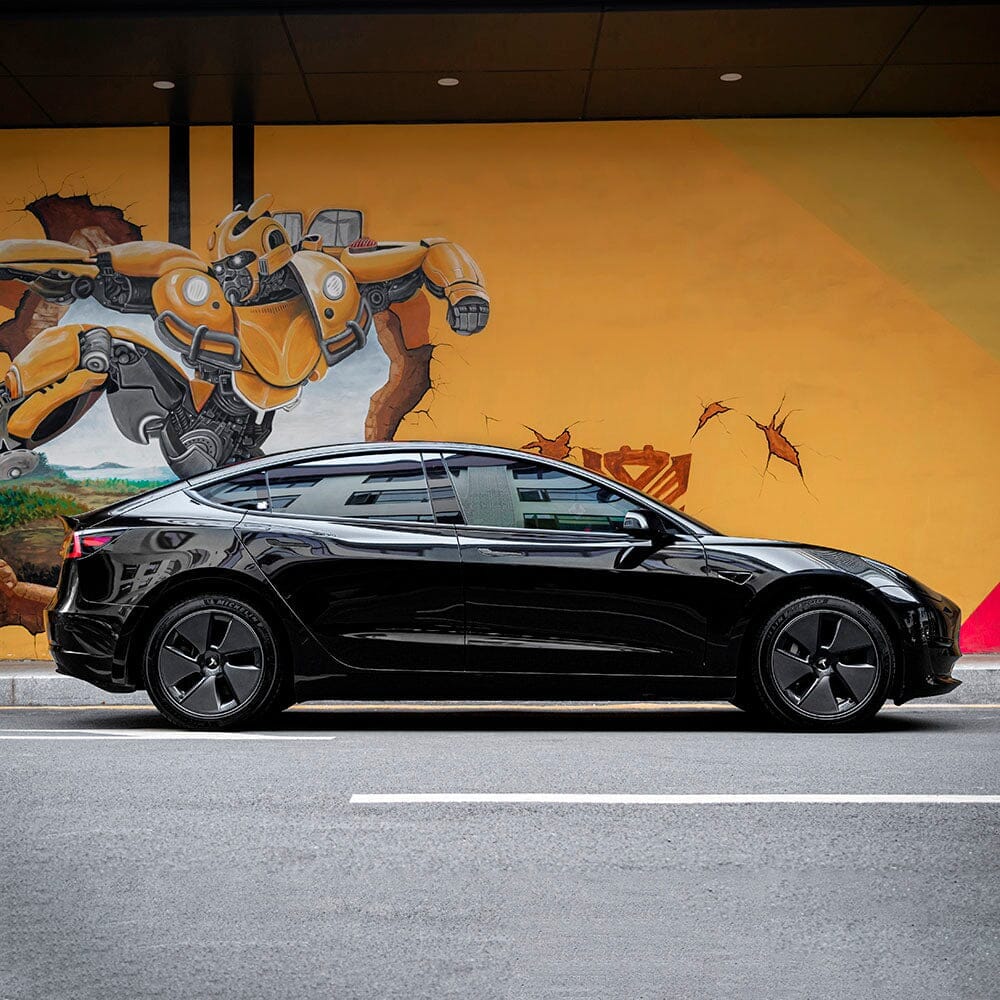

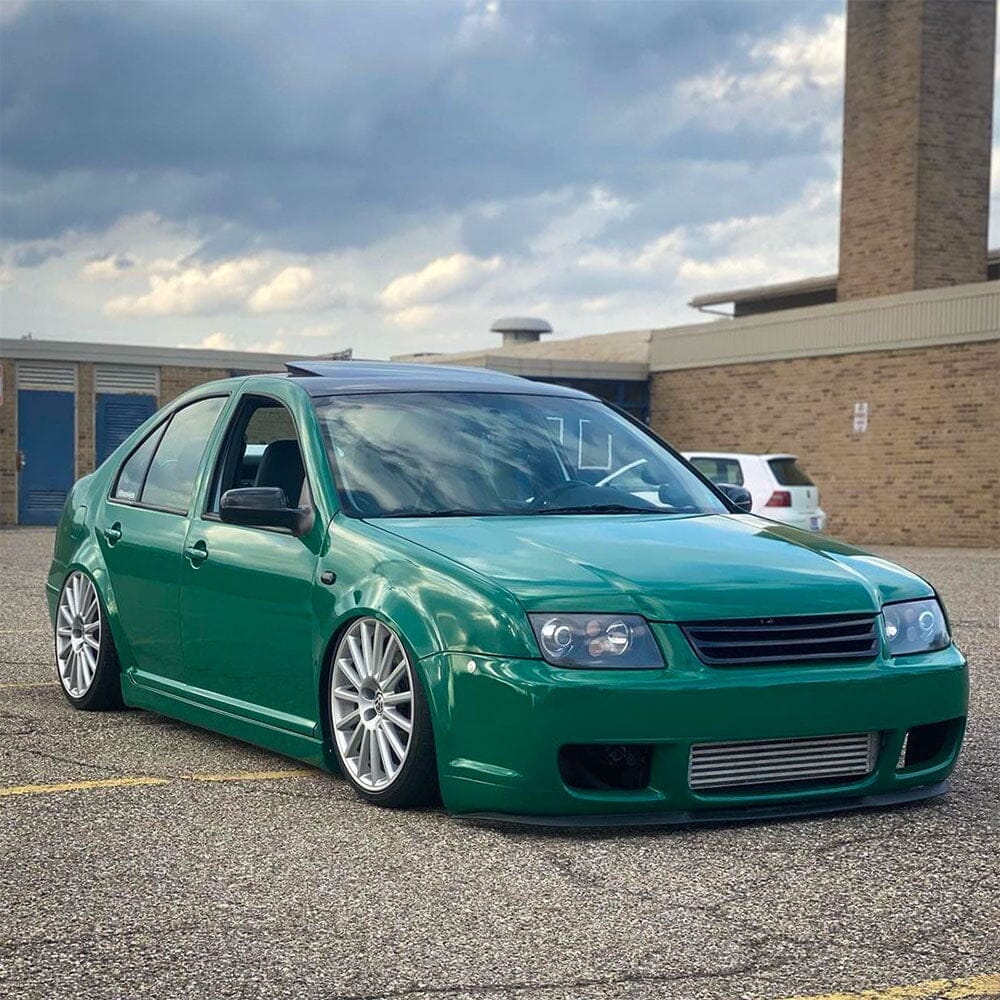

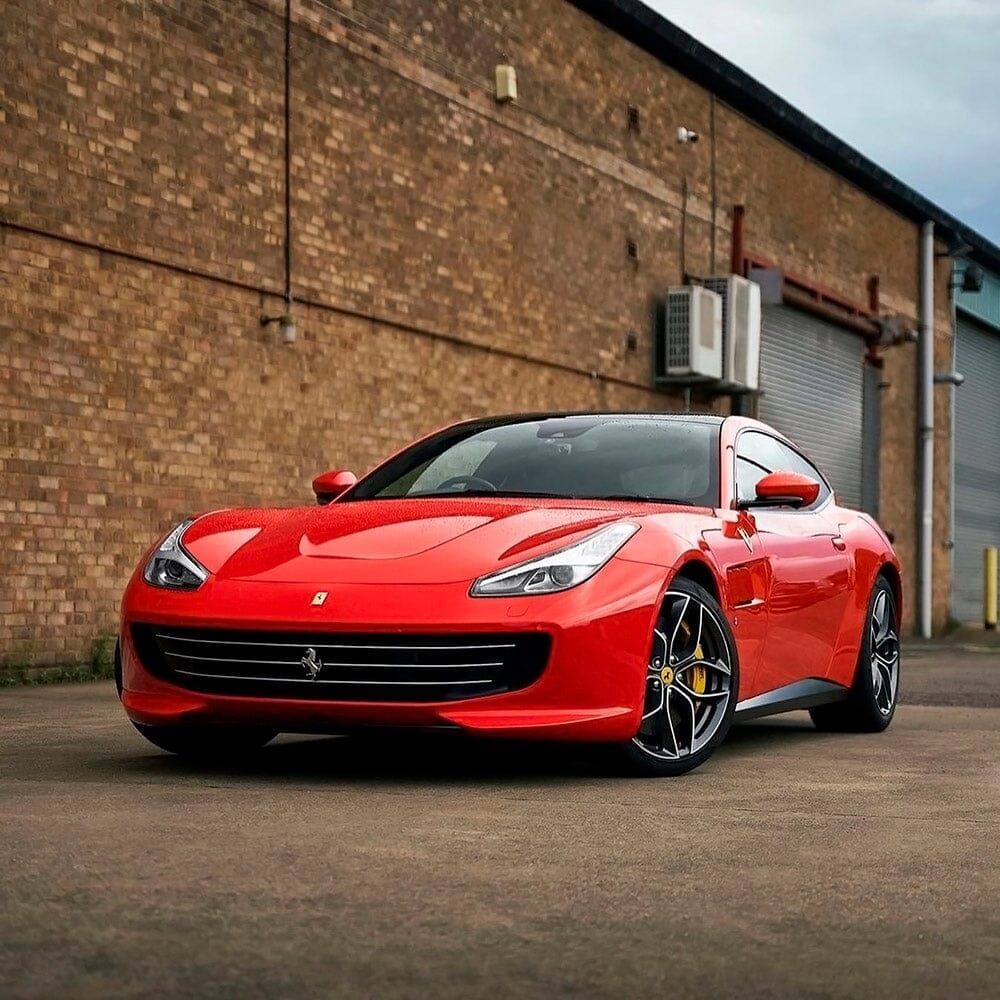

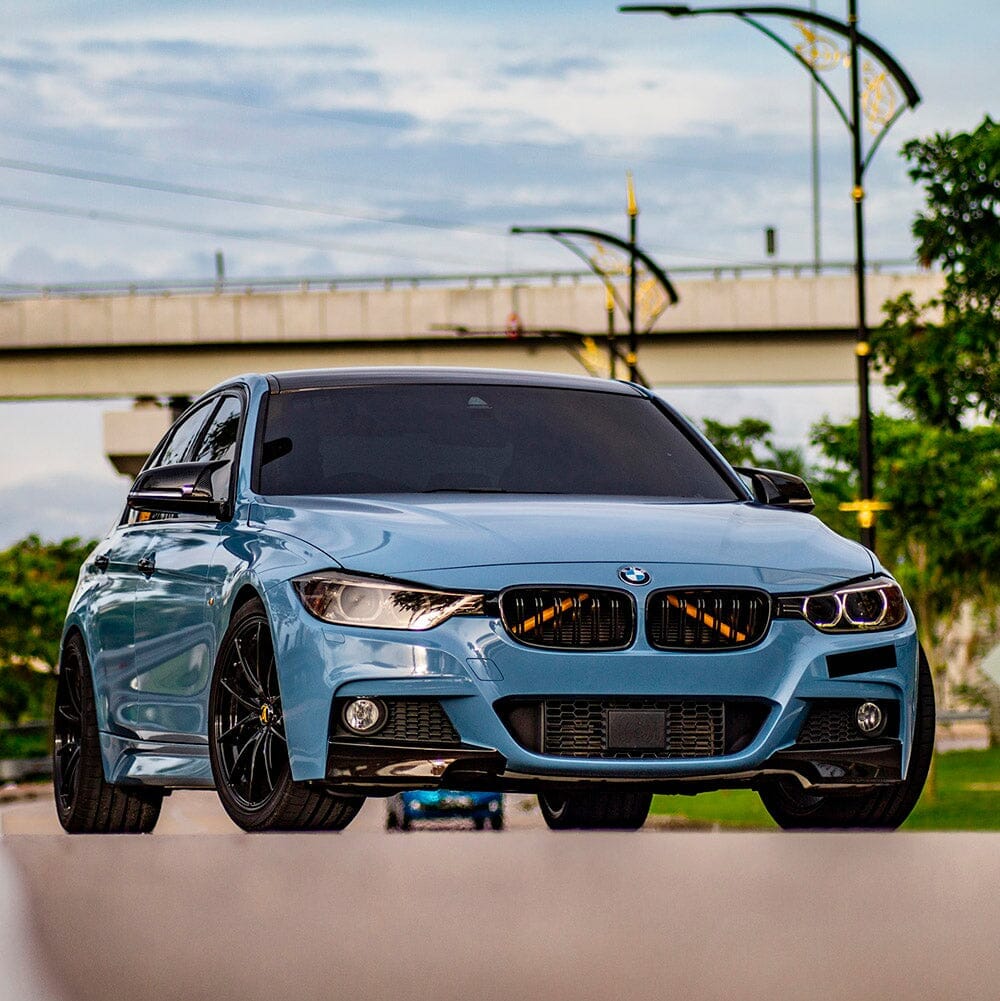

TeckWrap offers new very gloss HD colors that give your vehicle a solid as well as shiny finish. Smooth one without any orange peel. The material is stretchable, and one can wrap every edge and recessed area easily. And the adhesive is safe without giving you any trouble when uninstall. The film has a PET protective layer, which helps avoid scratches during the install process (should be peeled off before heating), and a plastic liner makes the film's surface more gloss and reflective.
The thickness of the film: 0.15mm
The thickness of film with release liner: 0.31mm
Type of film: High grade polymeric calendered film with air release
Adhesive: Henkel solvent-based acrylic adhesive, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 μm dry
Release liner: Plastic liner
Storing period: 2 years if stored in +10°С to +20°С, relative humidity 50%, in original package, away from direct sunlight, clean and dry place. Important: the top protective layer should be removed before installation, and the film should be stored without the protective layer to prevent "tunneling."
Indoor life: 4 years when followed rules of application and use
Outdoor life: 3 years when followed rules of application and use (Zone1)
Dimensional stability: shrinkage less than 2%
- Plastification: between 28%-38%
- Release Force(N/25mm), standard 0.08~0.20, result 0.12, temp 25°C 60%
- Initial Adhesion Force(g/25mm), result 972.48, temp 25°C 60%
- 180°Peel Strength(N/25mm), result 15.64, temp 25°C 60%
- Holding Force(h) (GB/T4851-1998, result, ≥425H, temp 25°C 60%
Light Ageing in UV Exposure: Test Method: ASTM D4329-13 Cycle A & ISO 105-A02:1993/Cor.2:2005, Test result: 3-4, pass, Exposure cycle: ASTM D4329-13 cycle A, Lamp type: UVA-340, 8h UV at (60±2.5)℃ BPT, 0.89 W/ (m2•nm)@340nm, 4h condensation at (50±2.5)℃ BPT, Exposure duration: 44h

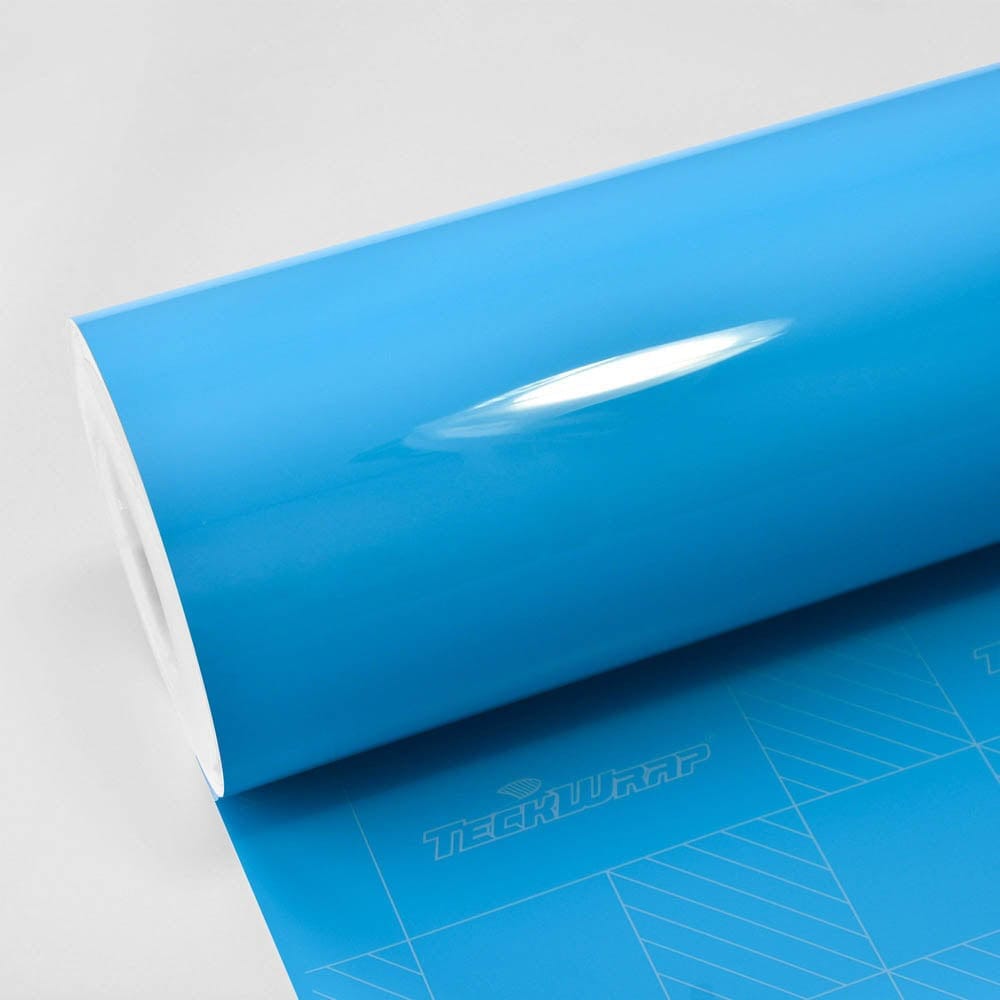

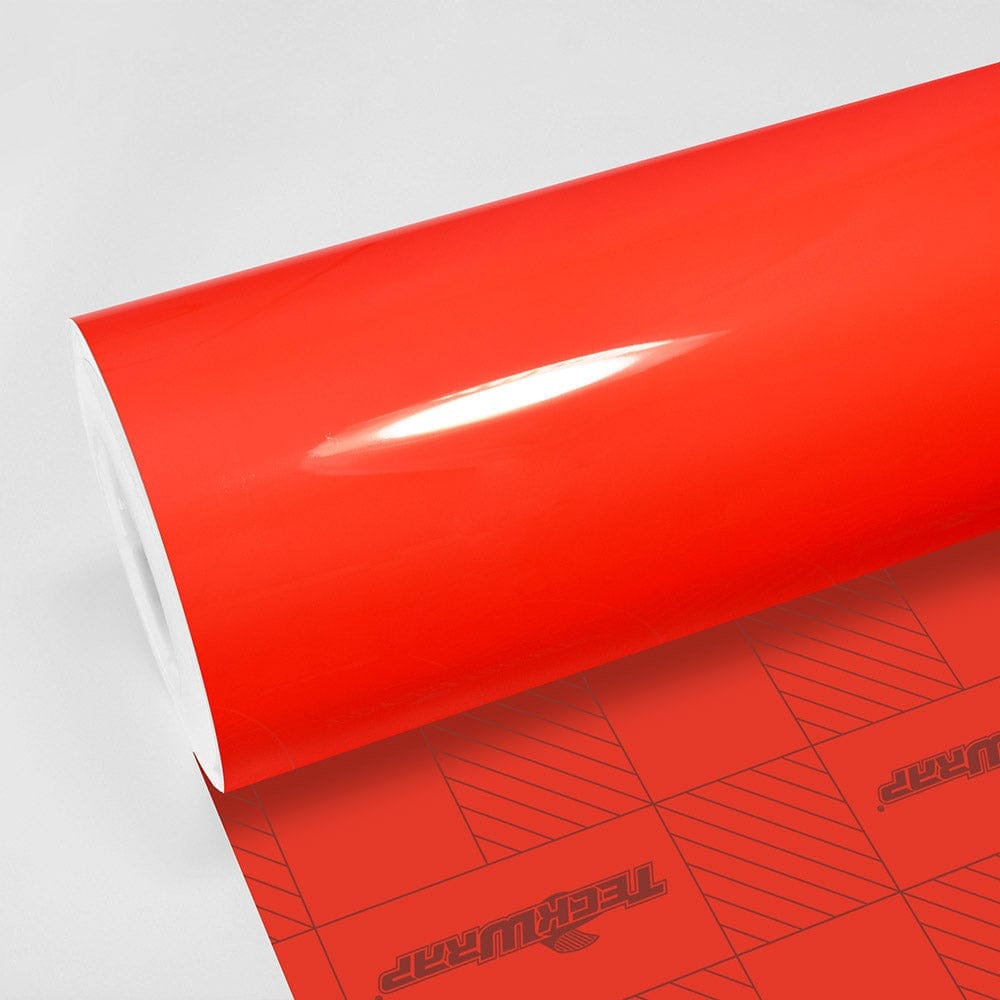

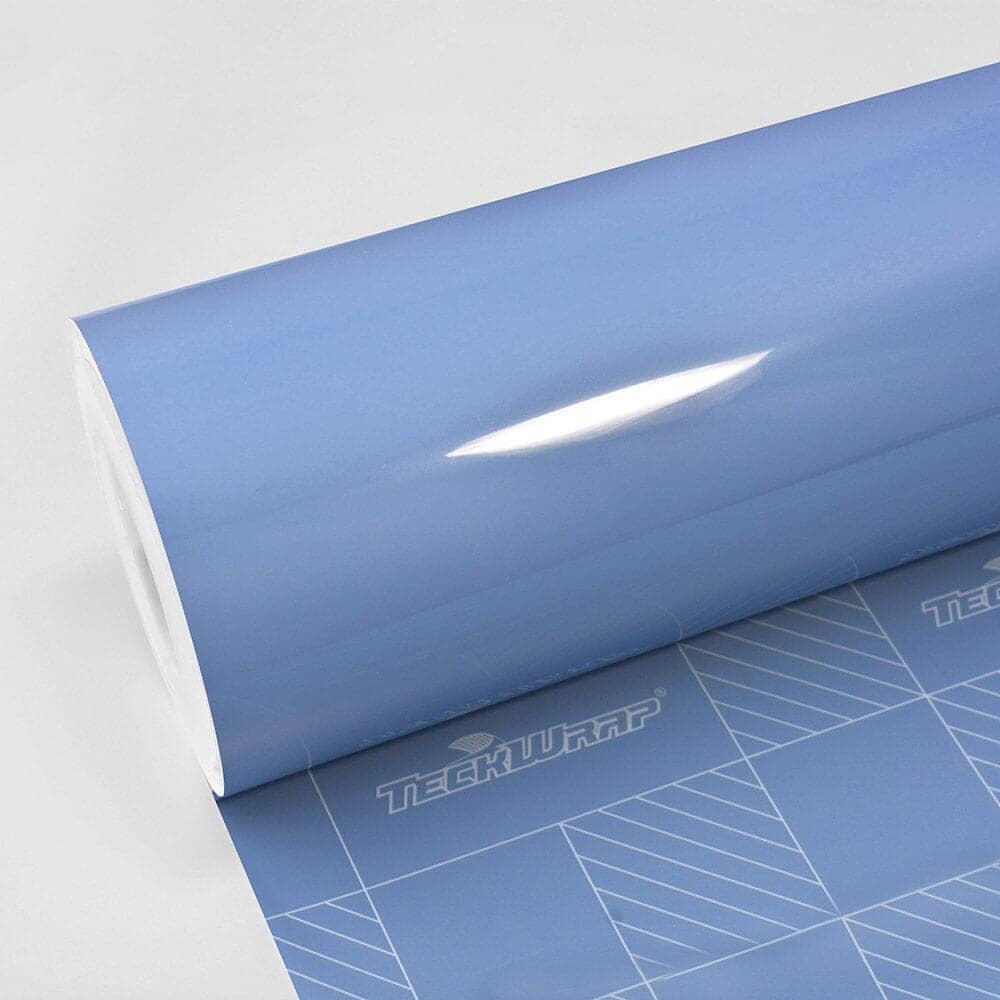

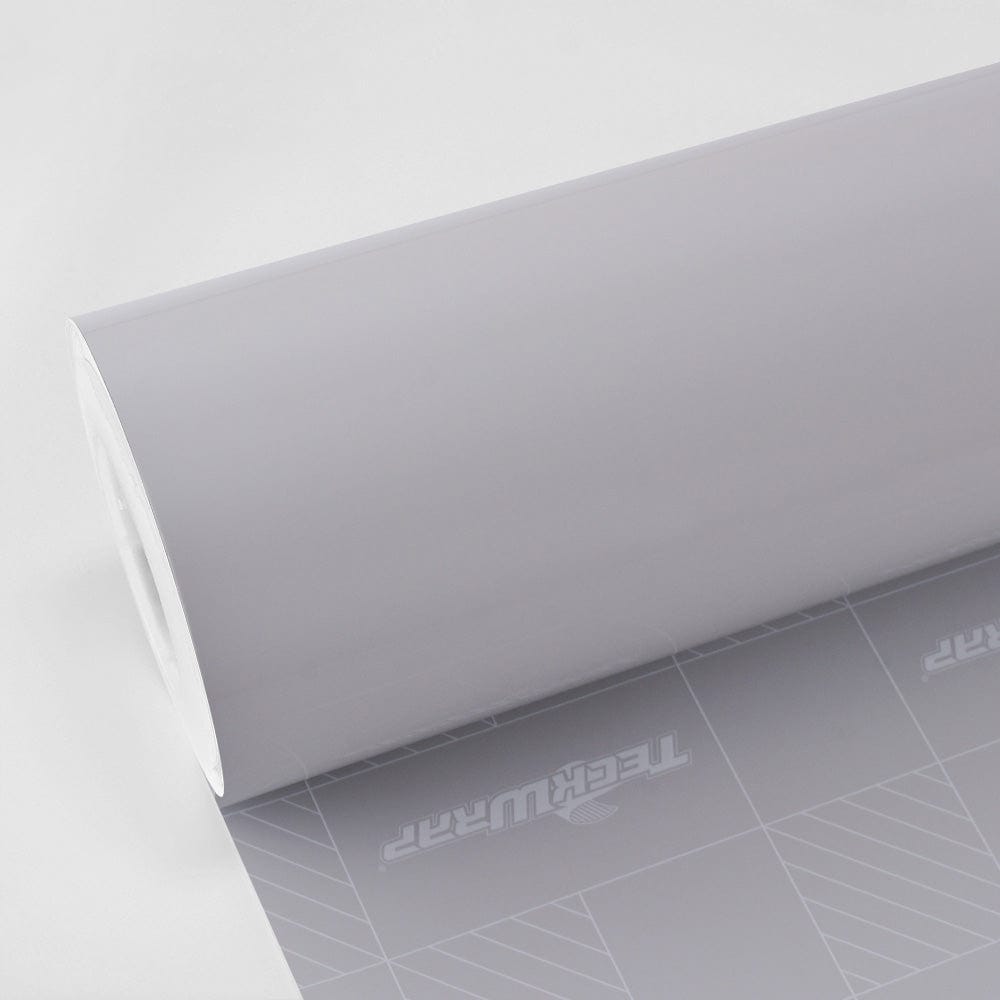

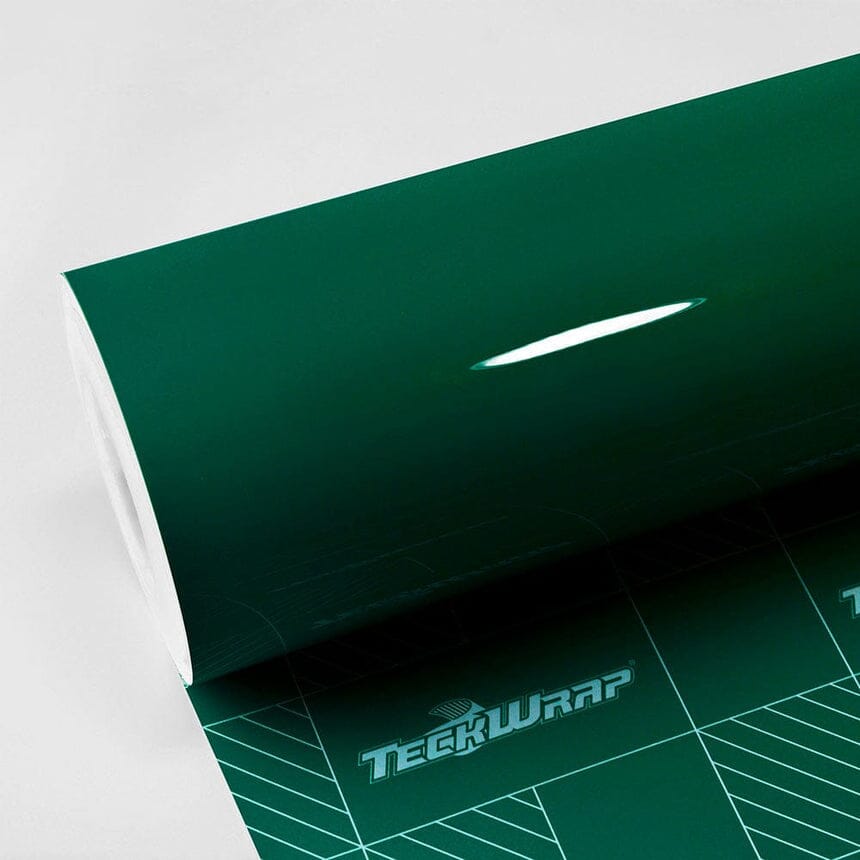

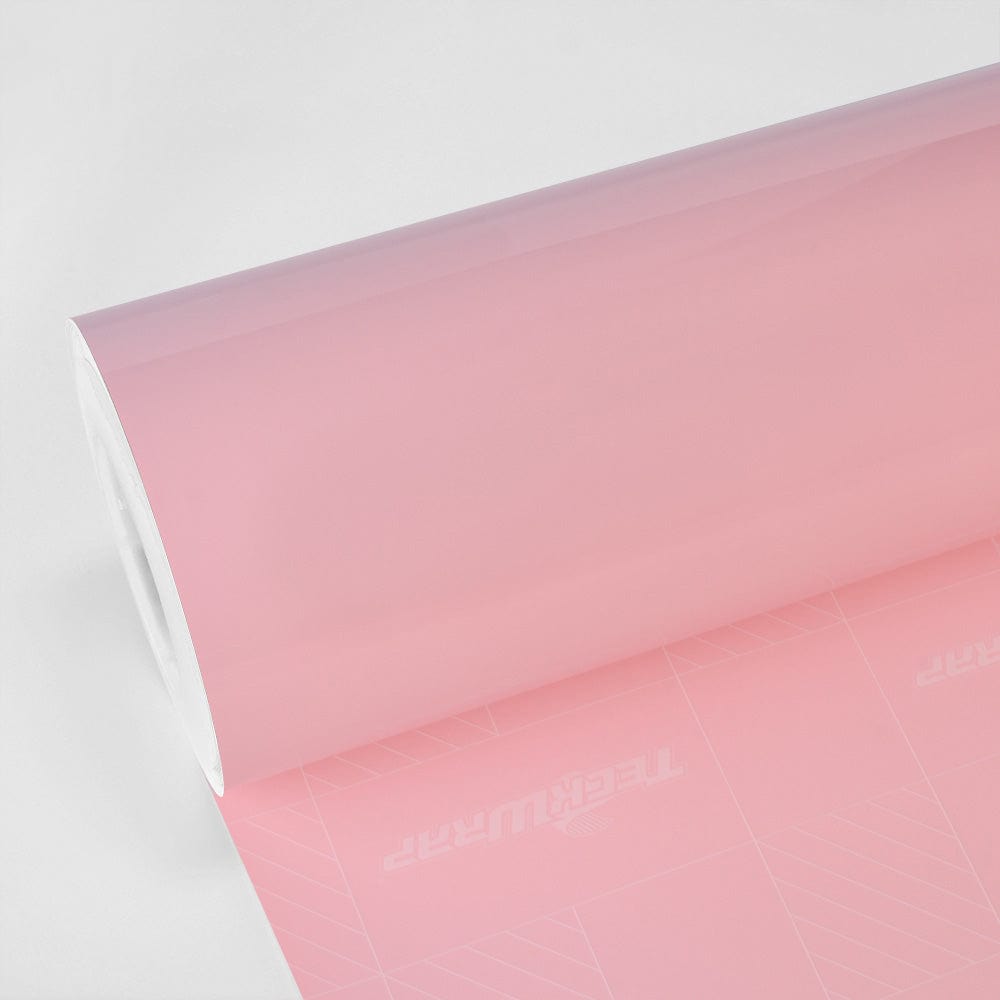

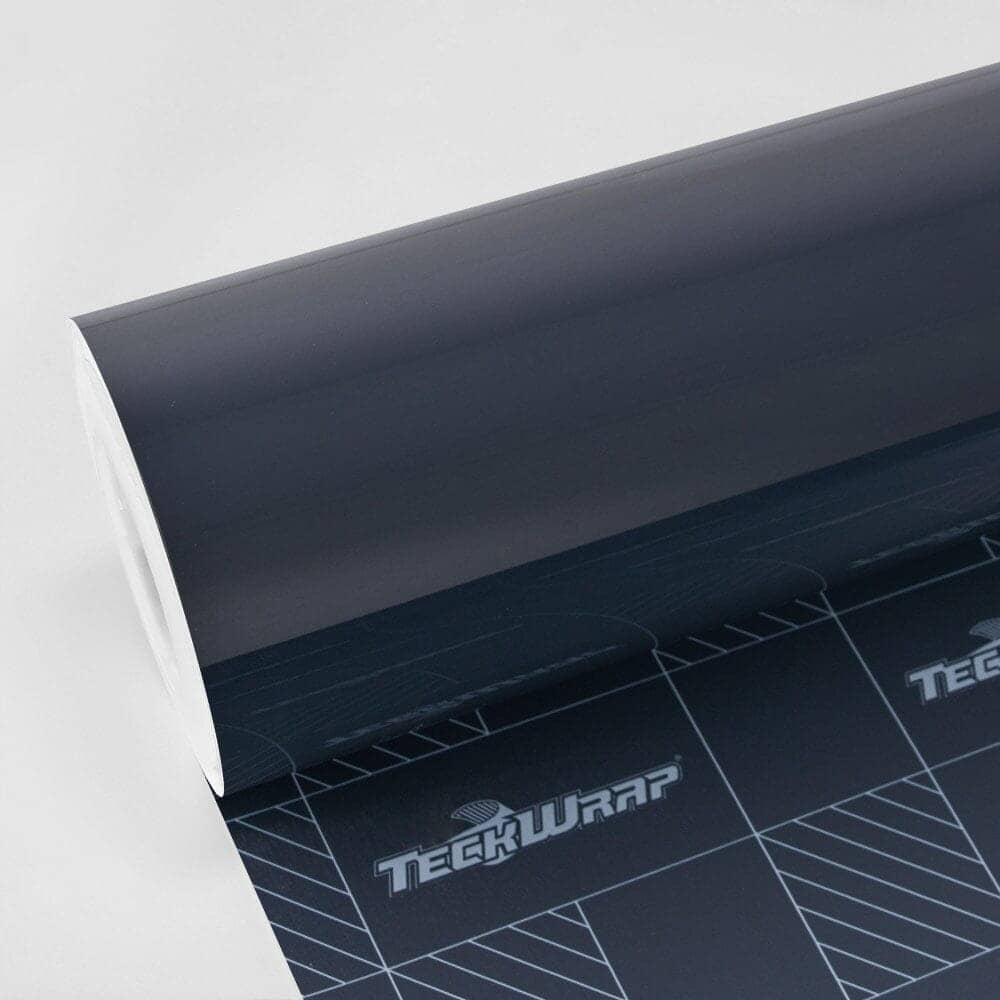

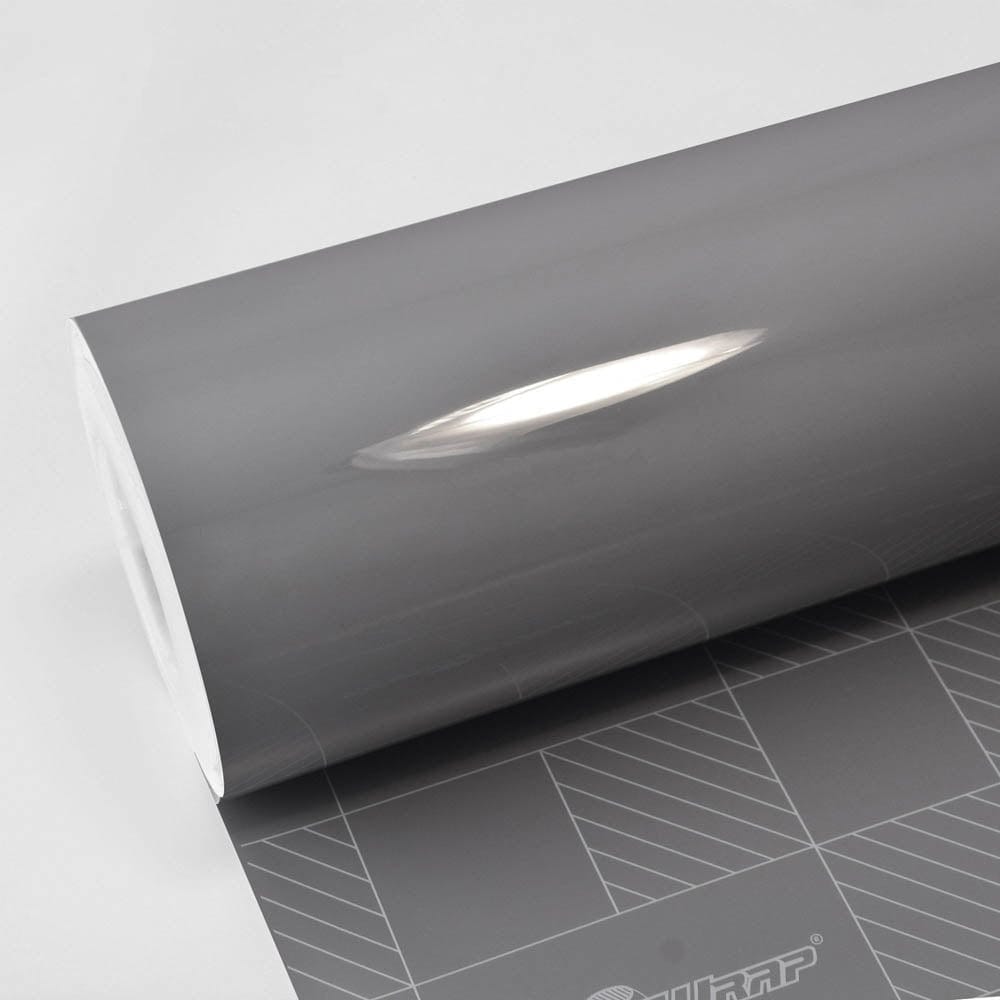

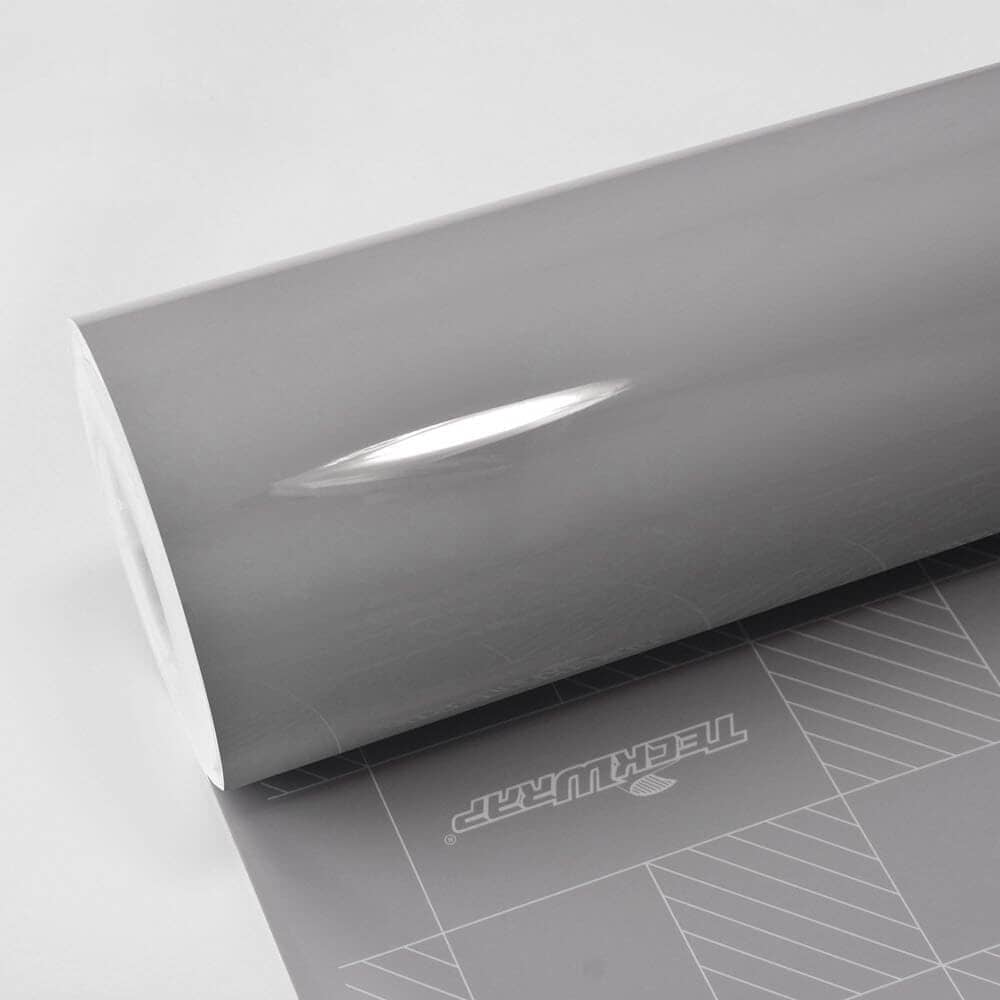

Package: Roll width 152 cm, length 18 m, weight 13 kg
Application: from +16°С to +23°С, usage from -30°С to +50°С
Tools: Standard squeegee with a soft buffer
Conformability: smooth and medium curved surface
Overlap width: 3-4mm
Post heating: 95 Celcius
Important note: The images, colors, and finishes on screen are approximate. For the real representation of the product, always check the color swatch. Rolls from the same production LOT number should be used for completing a wrap job as a slight batch to batch variation of color may occur. The film may scratch during the application or a day in and out use. The warranty does not cover the scratching of the film.
